Product Features

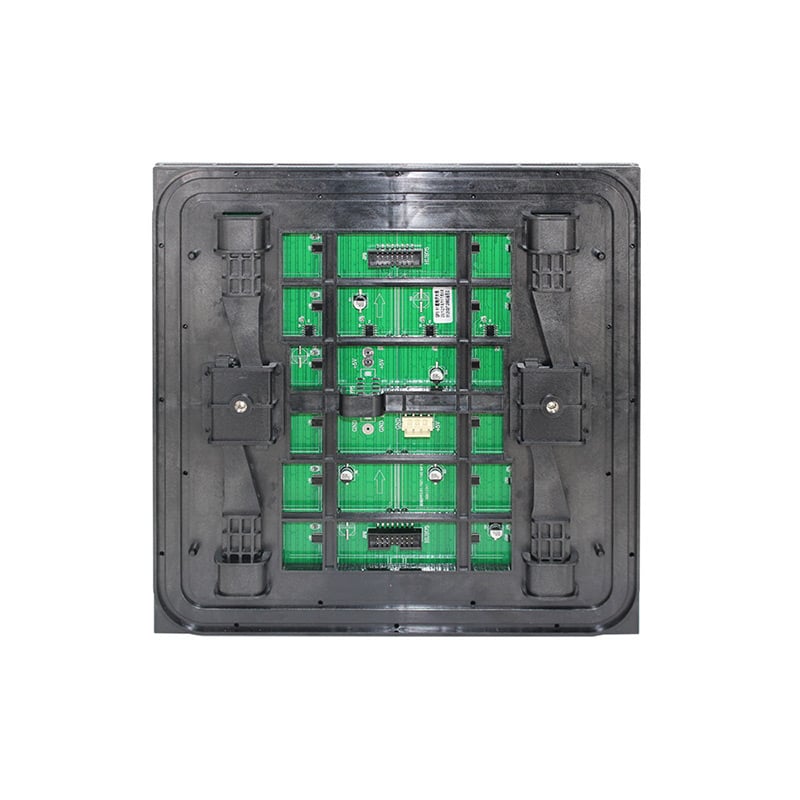

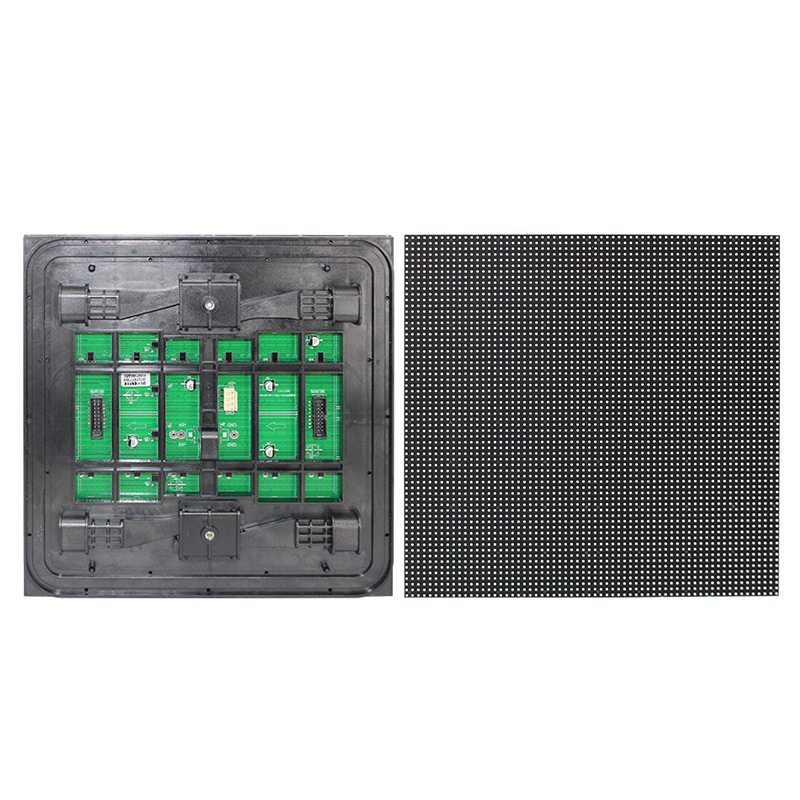

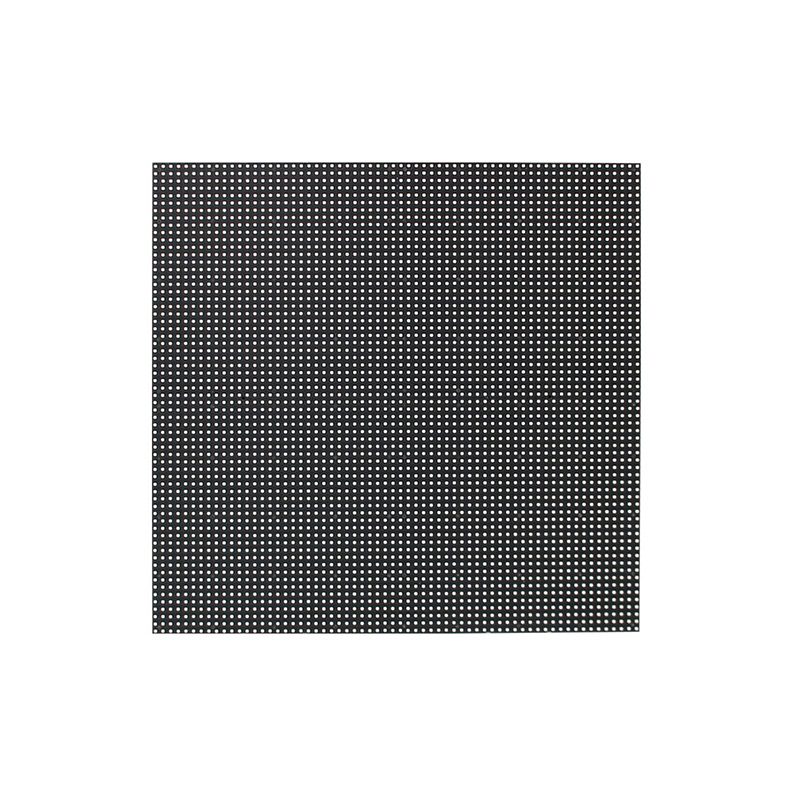

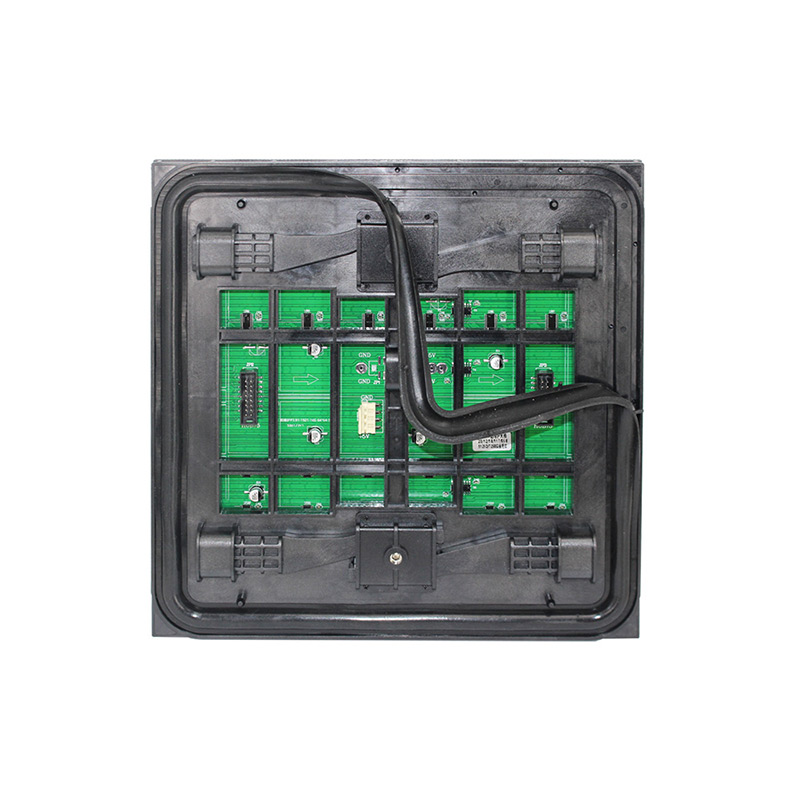

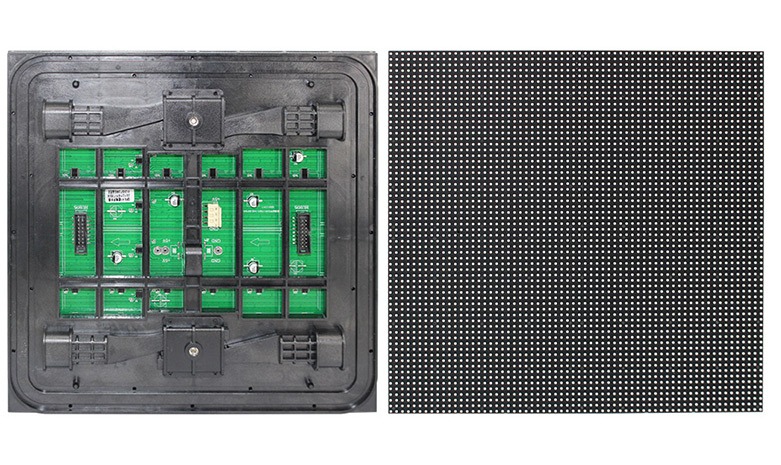

Outdoor P3.91mm Frontal and Rear Service LED Screen Module
Specially developed for dual maintenace on both front and back sides of the LED Display with limited space.
Frontal & Rear Service

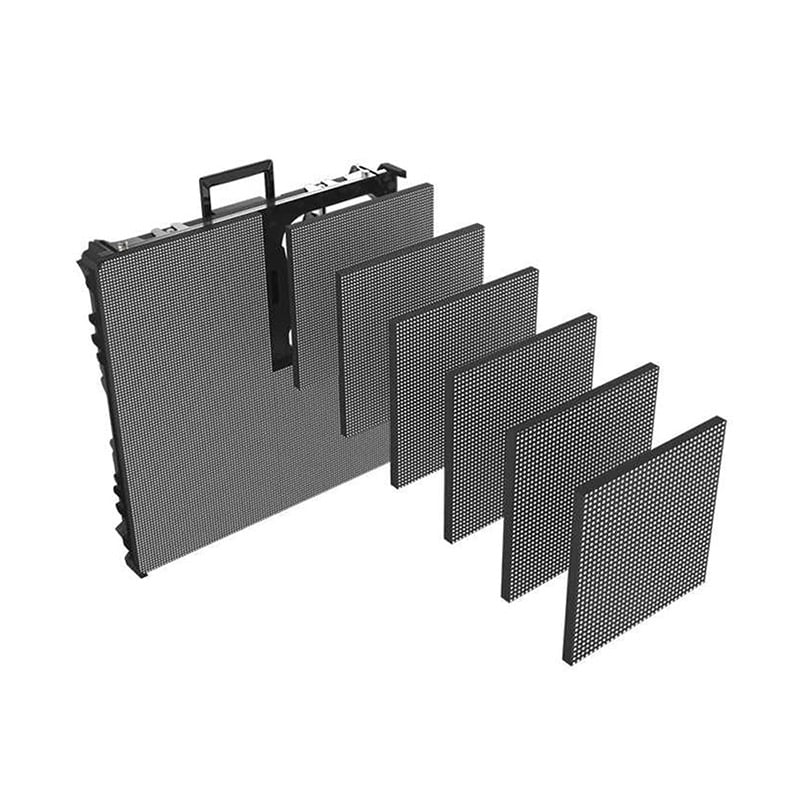

Frontal Service LED Display Cabinet with best design for easy connnection and easy assembling module,
aslo the Monitoring Function to check the working status of LED Display Parts. Customer Logo is
avaliable for Your Brand Building.

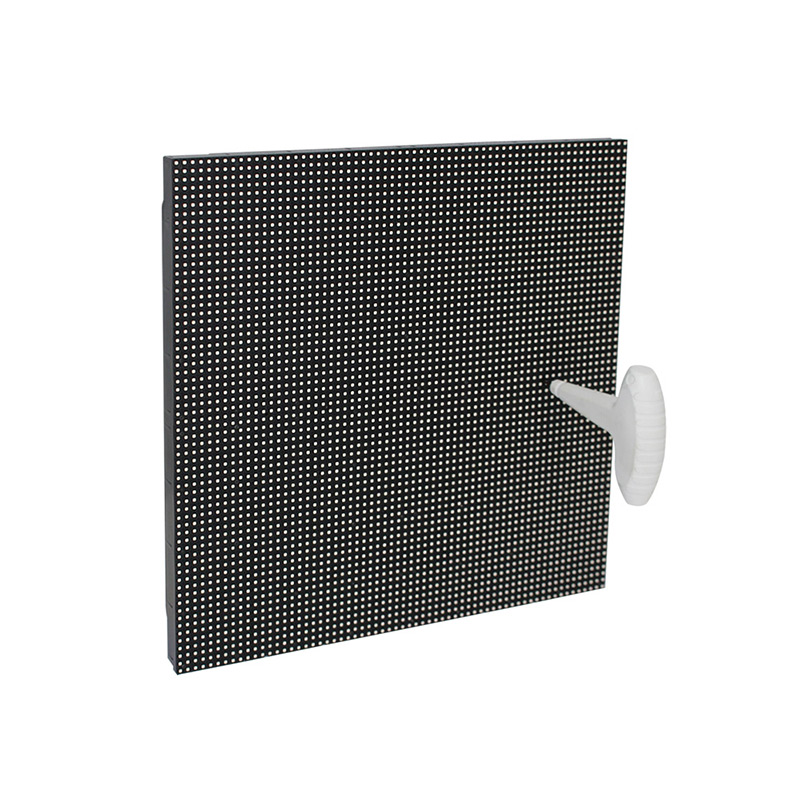

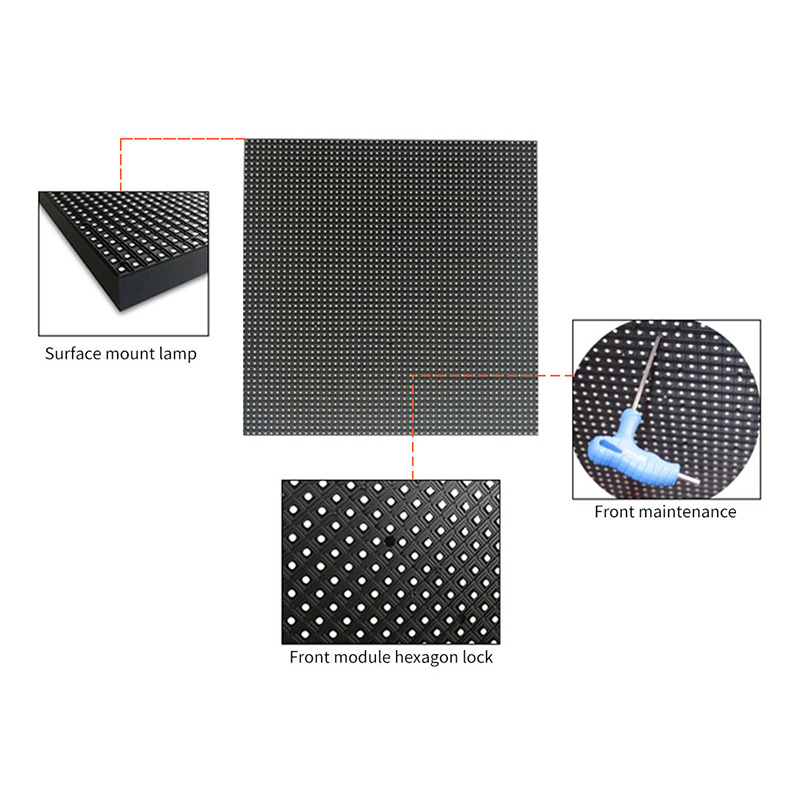

Where there is no space behind of led screen, you can choose our waterproof ip65 frontal service led

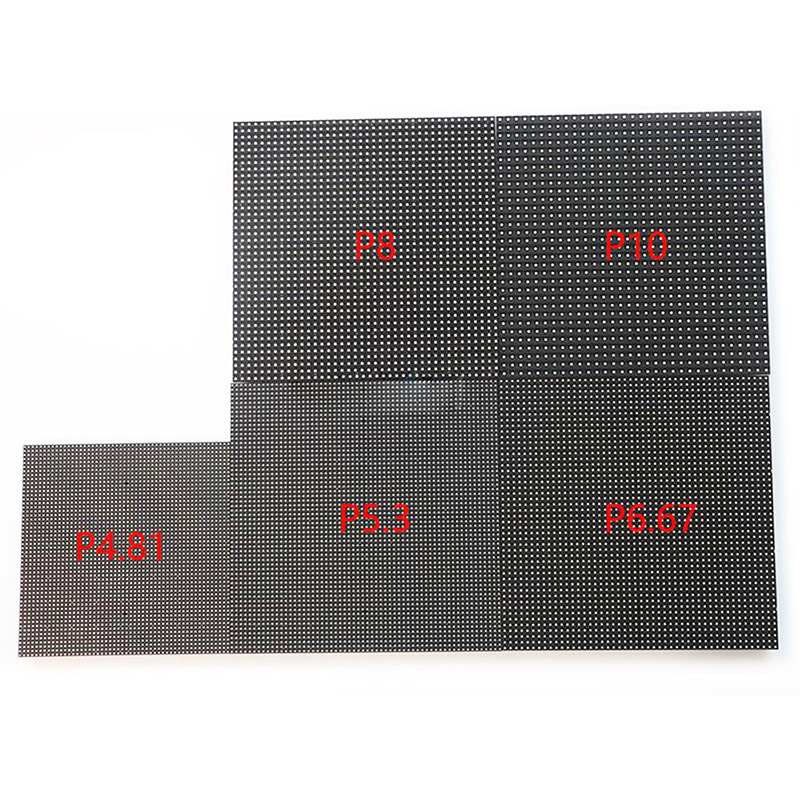

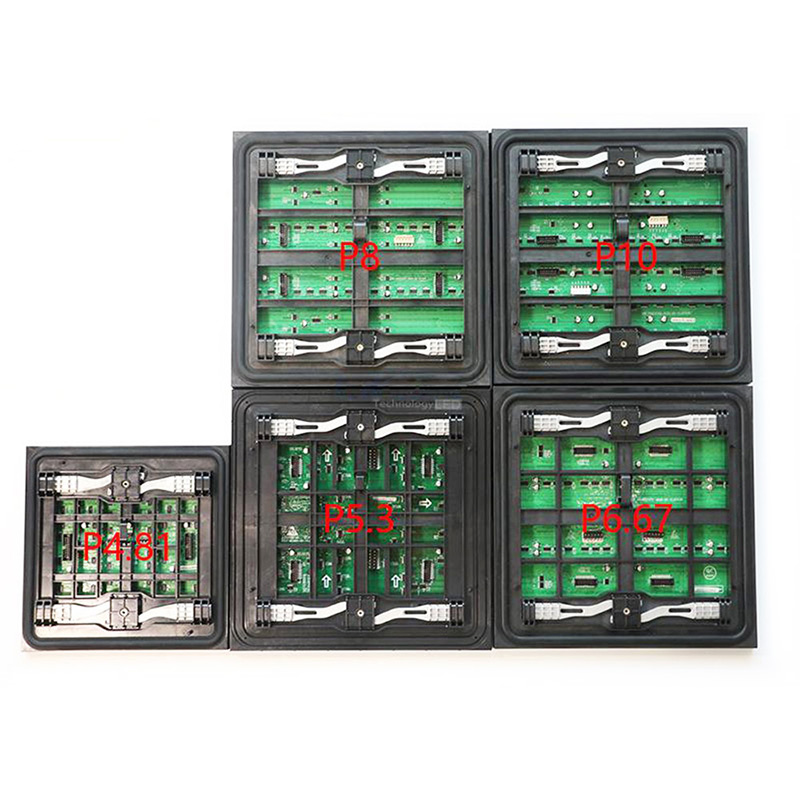

module such as P3.91mm, P4mm, P4.81mm, P5.3mm, P6.67mm, P8mm, P10mm, the cabinet is still with
back doors,but that is only for easy assembly in UNIT LED factory.when the ip65 led display installed,it is

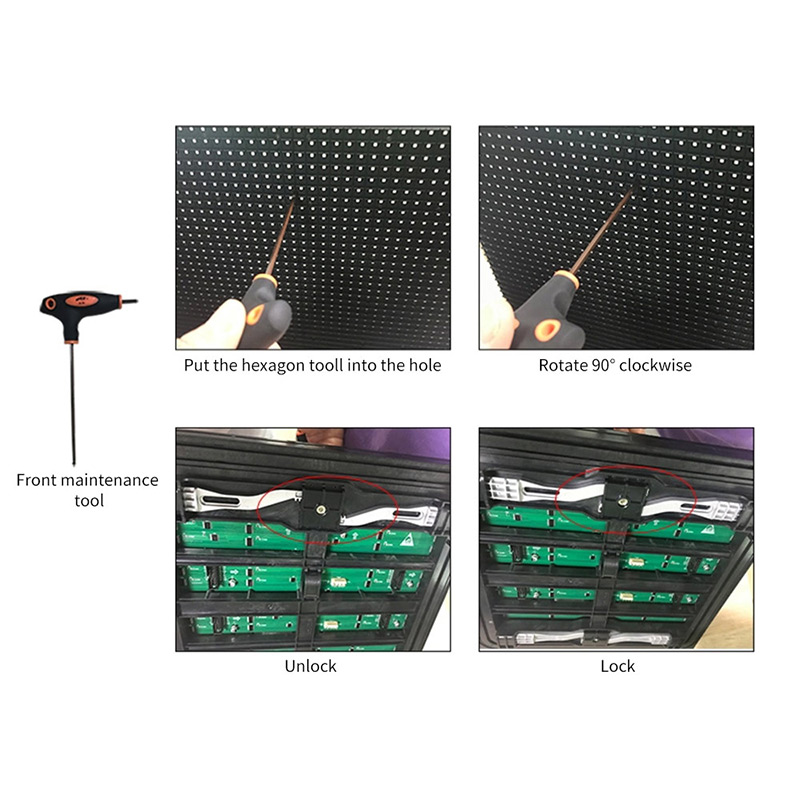

no longer necessary to open the back doors,becasuse you can take out the ip65 frontal service led display
module from the front side.
Product Specifications
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixels per cabinet | 192×192 (H*V) | 168×168 (H*V) | 128×128 (H*V) | 104×104 (H*V) |
| LED lifetime | 100,000h (video – 50% brightness) | |||
| Brightness | ≥1000 nits | |||

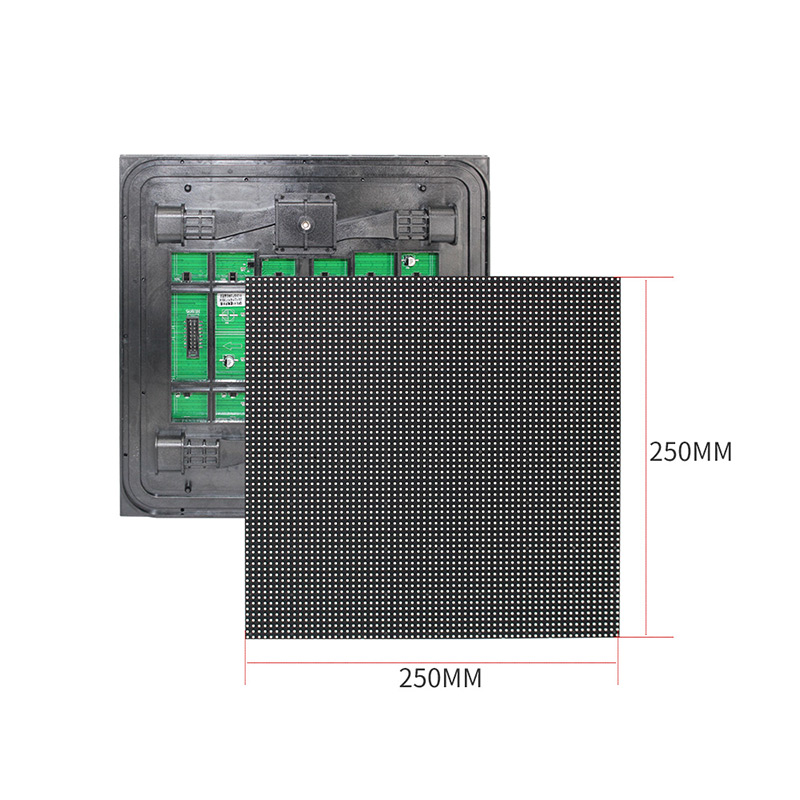

| Module size | 250*250mm | |||
| Module resolution | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Refresh rate | 960-1,920Hz | |||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
| Brightness uniformity | >98% | |||
| Dimming | 0-100% | |||
| Grey Level | 14 bits | |||
| Avg Power consumption | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² |
| Max Power consumption | 680 W/m² | 640 W/m² | 620 W/m² | 600 W/m² |
| Operation power voltage | 100-240V / 50-60Hz | |||
| Operational temperature | -10°C to +40°C / 14°F to 104°F | |||
| IP rating | IP54 for Indoor, IP65 for Outdoor | |||
| Serviceability | Front and back service | |||
FAQ
Q:Can I have a sample order for led screen?
Yes, we welcome sample order to test and check quality for both led module and led screen.
Q:How long will it take to delivery the goods?
For led module our delivery date is 7-15 days,for led screen order less than 100 square meters we can delviery within 20 working days.
Q:What kind of warranty do you offer?
We offer 2 years warranty for our products.
Q:How is the after sales service?
We have a professional team which is in charge of after-sales service, also a service hot-line dealing with your complains and feedback.We also offer 24-hour online service to help you solving problems.
Q:How can we guarantee quality?
Always a pre-production sample before mass production and final Inspection before shipment.
Q:How much is the freight?
The shipping cost is determined by the size of the screen.
Q:Can l customize it?
Of course. All the goods can be customized, we have a professional product development team, welcome tocustomize.
