Product Features
1.Public mould cabinet, easy to get compatible module
2.Waterproof grade lP65
3.Magenisum alloy material, most light weight, only 13kg
4.High precision, seamless connect
5.Fast and easy installation, save time and labour
6.Versatility, can drilling any module holes on cabinet, for indoor&outdoor
7.Excellent heat dissipation, well protect module&curcuit
8.Can pass cable inside cabinet, save cost; excellent design hole for cable, good waterproof

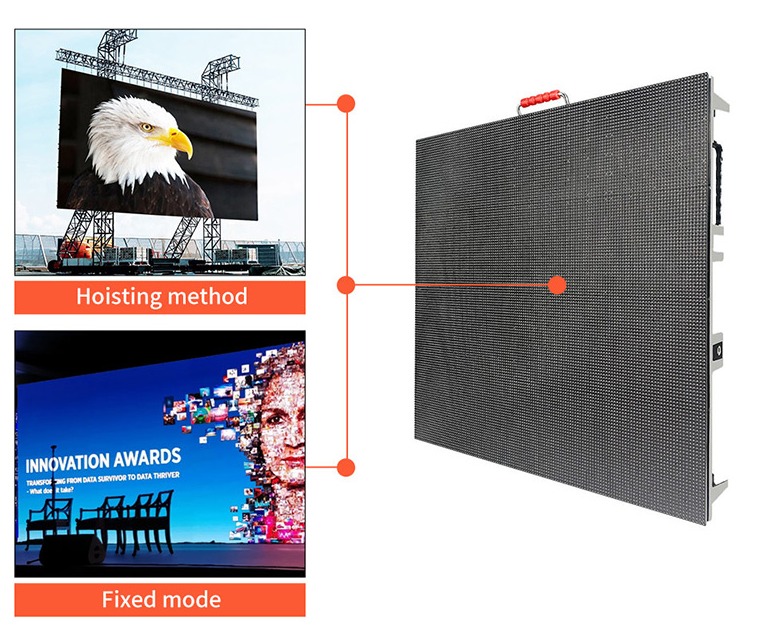

9.Can use for fixed installation, rental and stadium cabinet
Product Specifications
| Pixel Picth | P5 | P6.67 | P8 | P10 |
| LED Configuration | SMD 3 IN 1 | SMD 3 IN 1 | SMD 3 IN 1 | SMD 3 IN 1 |
| Pixel Density | 40000 pixel/m2 | 22500pixel/m2 | 15625pixel/m2 | 10000pixel/m2 |
| Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Module Resolution | 64*32 dots | 48*24 dots | 40*20 dots | 32*16 dots |
| Screen Size | Customize | Customize | Customize | Customize |
| Cabinet Size | 960*960 mm | 960*960 mm | 960*960 mm | 960*960 mm |
| Cabinet Resolution | 192*192 dots | 144*144 dots | 120*120 dots | 96*96 dots |
| Cabinet Weight | 13kg | 13kg | 13kg | 13kg |
| IP Rating | IP65 | IP65 | IP65 | IP65 |
| Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit |
| Display Scale | 16.7M | 16.7M | 16.7M | 16.7M |
| Max.Power Consumption | 700w/panel | 700w/panel | 700w/panel | 700w/panel |
| Ave.Power Consumption | 200w/panel | 200w/panel | 200w/panel | 200w/panel |
| Refresh Frequency | 1920Hz | 1920Hz | 1920Hz | 1920Hz |
| Operating Power | AC 96~242V | AC 96~242V | AC 96~242V | AC 96~242V |
| Operating Humidity | 10~90%RH | 10~90%RH | 10~90%RH | 10~90%RH |
| Operating Life | 100,000Hours | 100,000Hours | 100,000Hours | 100,000Hours |
FAQ
Q:Can I have a sample order for led screen?
Yes, we welcome sample order to test and check quality for both led module and led screen.
Q:How long will it take to delivery the goods?
For led module our delivery date is 7-15 days,for led screen order less than 100 square meters we can delviery within 20 working days.
Q:What kind of warranty do you offer?
We offer 2 years warranty for our products.
Q:How is the after sales service?
We have a professional team which is in charge of after-sales service, also a service hot-line dealing with your complains and feedback.We also offer 24-hour online service to help you solving problems.
Q:How can we guarantee quality?
Always a pre-production sample before mass production and final Inspection before shipment.
Q:How much is the freight?
The shipping cost is determined by the size of the screen.
Q:Can l customize it?
Of course. All the goods can be customized, we have a professional product development team, welcome tocustomize.
