What Is COB LED Display? How LED Display Is Manufactured?

What Is COB LED Display Technology and How Does It Work?

Definition and Core Principles of COB LED Display

COB or Chip on Board LED tech works by placing raw LED chips straight onto printed circuit boards instead of going through all those extra packaging steps we usually see. For these displays, several tiny micro-LED components get stuck to a base material with special conductive glue, then covered with a thick layer of silicone resin that acts as armor against knocks and weather stuff. Because everything is built so tightly together, manufacturers can create displays with pixel spacing under 1mm, which means super sharp images perfect for places like control rooms where every detail counts. According to Industry Standards Report from last year, this approach has really changed what's possible in high resolution screen tech.

How COB Integration Differs from Traditional LED Packaging

COB technology works differently from traditional SMD LEDs where each tiny light is wrapped separately before getting attached to circuit boards. With COB, manufacturers place raw LED chips straight onto the board surface and then cover everything with one solid protective coating. This approach gets rid of those pesky exposed solder points and little pockets of air between components. According to research published in Display Innovation Study last year, this design cut down on failures by around 40 percent when compared to standard SMD setups. Another big plus? The whole package allows for much closer arrangement of pixels, so images look smoother without that annoying grainy effect that sometimes appears on cheaper displays.

The Role of Substrate and Circuit Design in COB Performance

How well a COB display performs depends heavily on thermal management and how the circuits are laid out. Metal core PCB boards with those copper traces work really well at getting rid of heat when dealing with tight clusters of LEDs. This helps keep things stable even when pushing brightness past 1500 nits. Better circuit design also means less interference between individual micro LEDs, which allows for actual 4K resolution displays with pixel pitches under a millimeter. The result? Colors stay accurate no matter where someone stands looking at the screen, covering viewing angles over 160 degrees. That's why we see these COB technology displays popping up everywhere from boardrooms to shopping mall digital signage nowadays.

The COB LED Manufacturing Process: From Chip to Complete Module

Step-by-Step Overview of COB LED Production

The COB LED manufacturing process works through several key steps starting with substrate prep, then moving on to die bonding, wire bonding, and finally encapsulation. To begin, manufacturers clean either aluminum or ceramic substrates thoroughly before applying conductive adhesive coatings. Next comes automated placement where machines can fit hundreds of tiny LED chips onto each square inch surface area with incredible precision at the micron level. For electrical connections, manufacturers use extremely thin gold or copper wires. After that, they apply two layers during encapsulation one containing phosphor material and another made from silicone. These layers work together to boost both brightness levels and product longevity. The whole streamlined approach cuts down on manufacturing flaws significantly about 32 percent less than what's seen in conventional SMD techniques according to recent industry benchmarks from 2023.

Die Bonding: Precision Placement of LED Chips

High-speed pick-and-place machines position LED chips with placement accuracy under 15μm. Micro-dispensed conductive epoxy (as little as 0.01μl per chip) secures each die without overflow. Integrated vision systems verify alignment before curing, ensuring optimal thermal transfer and long-term reliability.

Wire Bonding: Establishing Reliable Electrical Connections

Ultrasonic wire bonding creates durable 25–50μm connections capable of withstanding over 10,000 thermal cycles. Gold wires are preferred for high-frequency applications due to their 58% superior signal integrity over aluminum. This step eliminates 92% of electrical connection failures common in conventional LED packaging (2024 Microelectronics Reliability Study).

Encapsulation: Protecting the Array and Enhancing Light Output

The encapsulation process works in two stages. First comes the phosphor coating which helps maintain consistent colors across the surface. Then there's a domed silicone layer on top that actually widens the viewing angle to around 170 degrees while cutting down glare by roughly 40 percent. Beyond these optical benefits, this protective covering stands up well against dust accumulation, moisture ingress, and physical impacts from everyday use. Automotive manufacturers have adopted this durable setup for their adaptive headlights systems. The COB modules perform quite impressively at about 220 lumens per watt efficiency, and importantly, they eliminate those annoying dark spots that typically form between individual chips in traditional lighting solutions.

Advantages of COB LED Displays: Brightness, Durability, and Design

High Brightness, Contrast, and Pixel Density for Crisp Imaging

COB displays pack in seriously impressive pixel density, sometimes going beyond 150,000 pixels per square meter which makes them great for viewing up close without seeing individual dots. The technology works by eliminating those annoying gaps between lenses and mounting the actual chips right onto the board. As a result, these displays can hit brightness levels around 1,200 cd/m² while showing colors that stretch past 110% of standard NTSC ranges. For folks working in fields where every detail counts, this matters a lot. Think about doctors reviewing X-rays or curators setting up art galleries. When visuals need to be razor sharp and true to life, COB displays just make sense for such demanding environments.

Improved Thermal Management and Reduced Failure Rates

The direct bond between LED chips and copper-core PCBs enables 40% more efficient heat dissipation than SMD designs. According to a 2023 AVIXA study, this thermal efficiency limits light decay to less than 2% over 10,000 hours and reduces annual failure rates by 63% in continuous-use environments such as stock exchange displays.

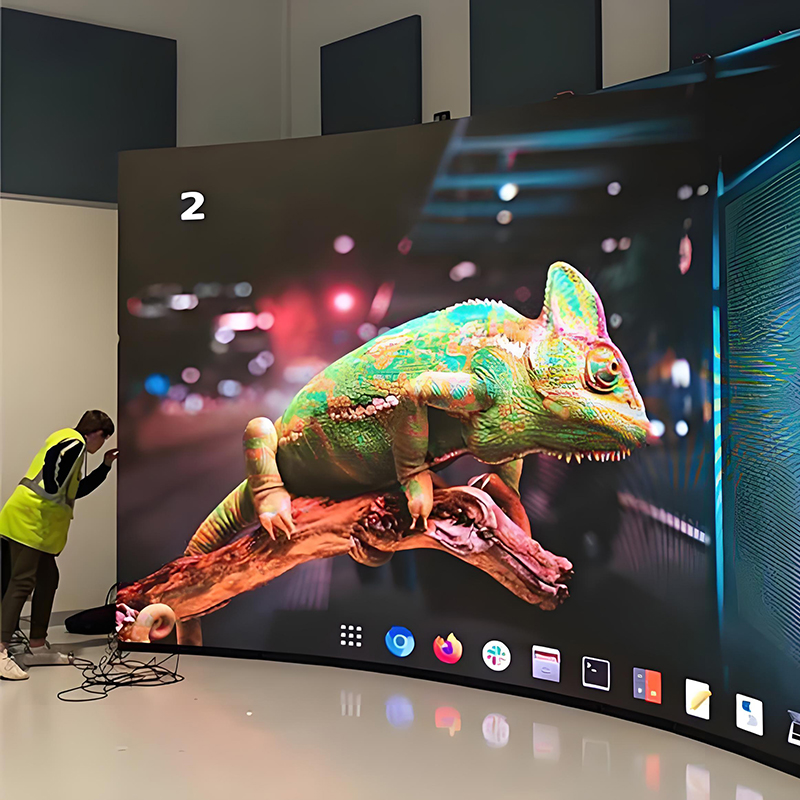

Seamless Visual Experience with Ultra-Thin, Minimal-Gap Design

With pixel gaps as narrow as 0.4mm and panel thickness under 20mm, COB displays create nearly invisible seams in video walls. The absence of exposed solder points allows for curved installations in broadcast studios and other high-vibration environments where traditional SMD panels would fail.

Lower Maintenance Costs and Longer Operational Lifespan

Hermetic encapsulation and fewer modular components reduce maintenance needs by 70% compared to SMD systems. COB displays typically operate beyond 100,000 hours with less than 5% brightness degradation, offering triple the cost-effectiveness per lumen in demanding applications like airport signage.

COB vs SMD LED: Key Differences in Performance and Application

Manufacturing and Structural Differences Between COB and SMD

With COB tech, manufacturers actually mount those raw LED chips straight onto substrates via die bonding techniques, which results in chip packing densities anywhere from 10 to even 100 times greater compared to traditional SMD modules. The big advantage here is getting rid of all those separate lamp housings while at the same time boosting how well heat moves away from the components since they sit right against metal core PCBs. On the flip side, standard SMD setups involve putting already packaged LEDs onto circuit boards, but this creates annoying little air spaces between components that really slow down heat dissipation. These gaps not only make cooling less efficient, they also restrict just how tightly packed pixels can be arranged on display surfaces, something manufacturers have been wrestling with for years now.

Comparative Analysis: Resolution, Brightness, and Reliability

With COB technology, manufacturers can achieve pixel pitches down to P0.4, which makes it possible to get true 4K quality even when viewers are standing very close to the screen. According to accelerated aging tests conducted recently, COB modules maintain around 90% of their original brightness after running for 30,000 hours straight. That's quite impressive compared to standard SMD options that typically drop to about 70% brightness under similar testing conditions, according to Signlite LED research from last year. When looking at heat management too, thermal imaging shows COB displays run at approximately 45 degrees Celsius during normal industrial operation. This is actually 23 degrees cooler than what we see with traditional SMD setups. The lower operating temperature really helps improve overall system reliability, especially important for installations that need to stay online continuously day after day.

When to Choose COB Over SMD for B2B Applications

In places where every pixel matters, like control rooms and broadcast studios, the smooth visuals of COB displays make sense despite the bigger upfront cost. These screens typically last well over 70 thousand hours before needing replacement, plus they require almost no maintenance at all. That makes them perfect for busy office areas or those big outdoor signs that have to withstand whatever weather comes their way. Sure, SMD technology still works fine for simple information boards around town, but when it really counts for picture quality and dependable performance, most professionals go with COB. We've seen this happen time and again in our industry, especially when clients need something that won't let them down during critical moments.

Applications of COB LED Displays in High-Resolution Commercial Environments

Fine-Pitch Indoor Displays for Control Rooms and Broadcast Studios

With COB tech now reaching those tiny P0.4 pixel pitches, it's becoming the go-to solution for places needing ultra high res displays such as air traffic control rooms and broadcast studios. What makes this tech stand out is how smooth the whole screen looks from any angle, no grainy spots whatsoever which matters a lot when someone needs to stare at it for hours on end. Some studies we've seen recently show that companies switching to these displays report fewer mistakes during operations, sometimes cutting them down by around 40 percent in certain situations. Makes sense really because there's just nothing to distract the eye anymore.

Retail, Command Centers, and Corporate Video Walls

Retailers use COB displays for immersive product presentations, leveraging 160° viewing angles and 1,000,000:1 contrast ratios. Corporate boardrooms deploy ultra-thin video walls for real-time data visualization, while command centers benefit from 20–30% lower heat output than SMD systems, ensuring stable, long-term performance.

Future Trends: Expanding Use in Digital Signage and Smart Spaces

Recent improvements in COB manufacturing have made it possible to work together with edge computing systems, which allows for dynamic content on those smart office dashboards we see everywhere these days, plus those cool interactive displays in museums that make exhibits so much more engaging. Looking at what's coming next, there are some pretty interesting developments happening already. Retail stores are starting to experiment with AI driven displays that respond when people wave their hands around them, while some companies are testing AR overlays during employee training sessions. The fact that COB plays nicely with existing IoT networks means this technology could end up being one of those building blocks for cities trying to build out their smart infrastructure in the years ahead. Time will tell if it actually makes it big though.

FAQ

What is COB LED display technology?

COB or Chip on Board LED technology involves placing raw LED chips directly onto printed circuit boards, bypassing traditional packaging steps.

How does COB LED differ from traditional LED packaging?

Unlike SMD LEDs, COB tech places raw LED chips directly onto the board surface, reducing air pockets and improving pixel arrangement.

What are the advantages of COB displays?

COB displays offer high brightness, improved thermal management, reduced failure rates, seamless visuals, lower maintenance costs, and a longer lifespan.

Where are COB LED displays commonly used?

COB LED displays are used in control rooms, broadcast studios, retail applications, corporate environments, and are expanding in smart spaces and digital signage.

Why choose COB over SMD for certain applications?

COB is preferred for high-resolution applications that demand smooth visuals and reliability, despite higher upfront costs.
